Rako RAVFR Volt Free Switch to Rakom RF Interface

Description

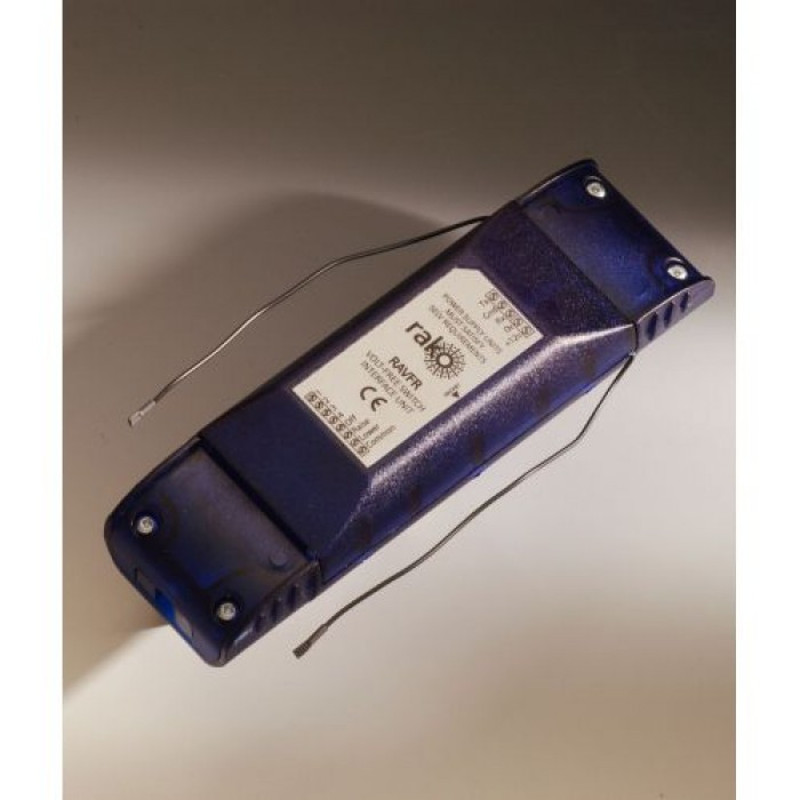

Rako RAVFR Volt Free Switch to Rakom RF Interface

It creates a link between volt-free relay, switch or PIR sensor outputs and Rako RF based receivers.  The unit accepts 7 contact closures for scenes 1-4, off, raise and lower.  When connected to a PIR sensor, the unit can be configured to enable and disable the PIR using an RCP RF wall plate or RAMB1 timeclock.

Please note this needs a 12V DC Supply or RAPSU

RELAY CONTROL

The Rako RAVFR volt-free contact interface allows scene control from ordinary  push switches, relays and PIR movement sensors.  In factory default setting, the unit will select scenes 1-4, off and master raise & lower.  When configured with the RASOFT programming software, it is possible to enable and disable switch inputs, select toggle mode and set PIR delay times.
