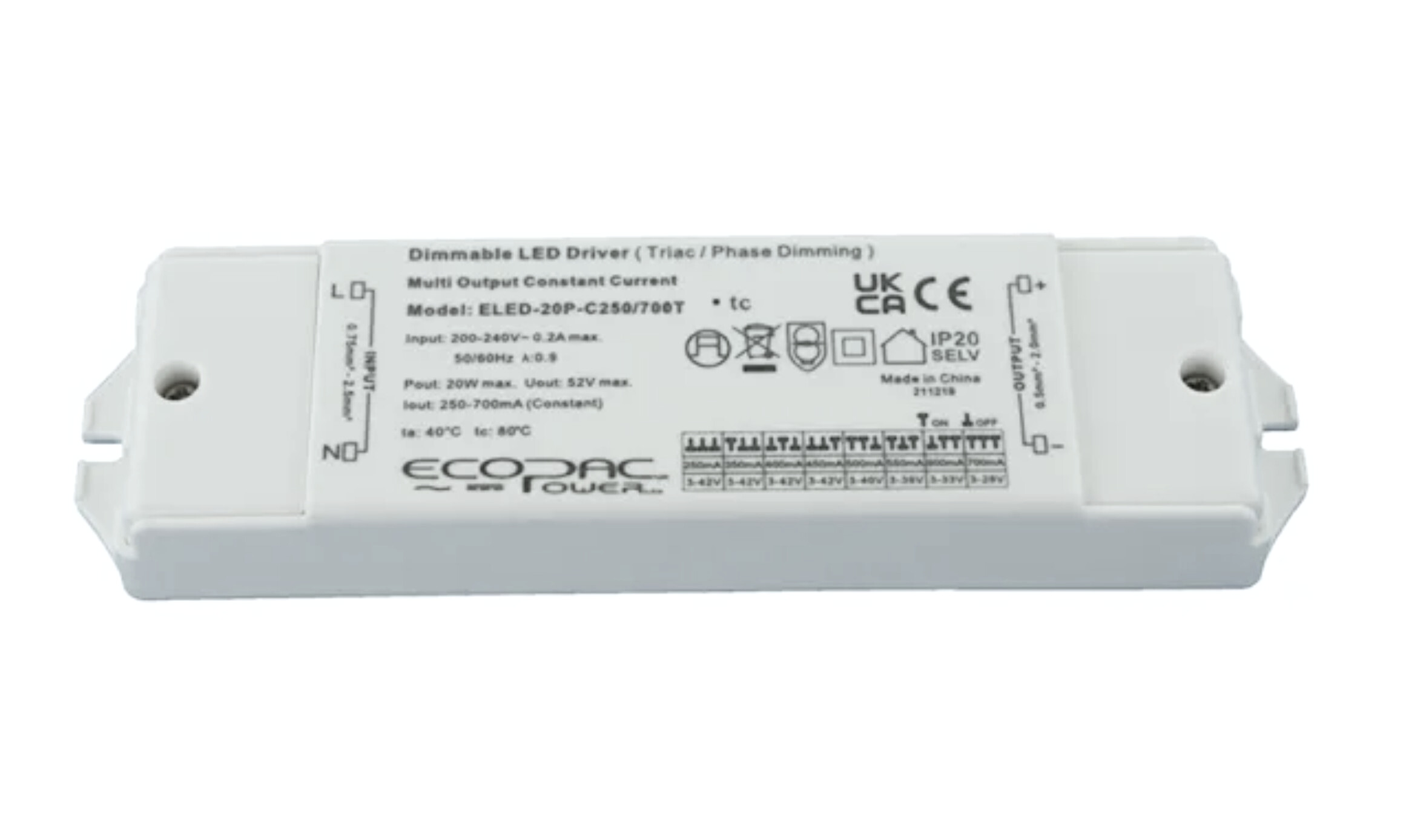

ELED-20P-C250/700T Series Triac Dimmable Constant Current LED Drivers

ELED-20P-C250/700T LED Driver – 20W TRIAC-Dimmable Constant Current

Call for project quotations and trade discounts

The ELED-20P-C250/700T Series is a 20W constant current LED driver with high-performance TRIAC dimming technology. Designed for architectural, retail, and commercial lighting applications, it provides smooth, silent dimming and consistent current output.

Key Features:

• ☑️ Power Output: 20W
• ☑️ Input Voltage: 200–240VAC, 47–63Hz
• ☑️ Output Current Options: 250–700mA
• ☑️ Dimming: TRIAC / leading & trailing edge compatible
• ☑️ Efficiency: Up to 86%
• ☑️ Protections: Short circuit / overload / over-temperature
• ☑️ Cooling: Free air convection
• ☑️ Warranty: 3 years

Applications:

• ☑️ LED downlights and wall lights
• ☑️ Retail display illumination
• ☑️ General indoor architectural lighting

Available Models:

• ELED-20-C250/700DP2(700mA)
• ELED-20-C250/700DP2(600mA)
• ELED-20-C250/700DP2(550mA)
• ELED-20-C250/700DP2(500mA)
• ELED-20-C250/700DP2(450mA)
• ELED-20-C250/700DP2(400mA)
• ELED-20-C250/700DP2(350mA)
• ELED-20-C250/700DP2(250mA)

Why Choose the ELED-20P-C250/700T?

• ✅ Flexible current range for versatile use
• ✅ Flicker-free TRIAC dimming
• ✅ Compact and reliable for commercial environments
• ✅ Supported by Ecopac’s 3-year warranty and technical expertise

Ecopac ELED-20-C250/700DP2
