Description

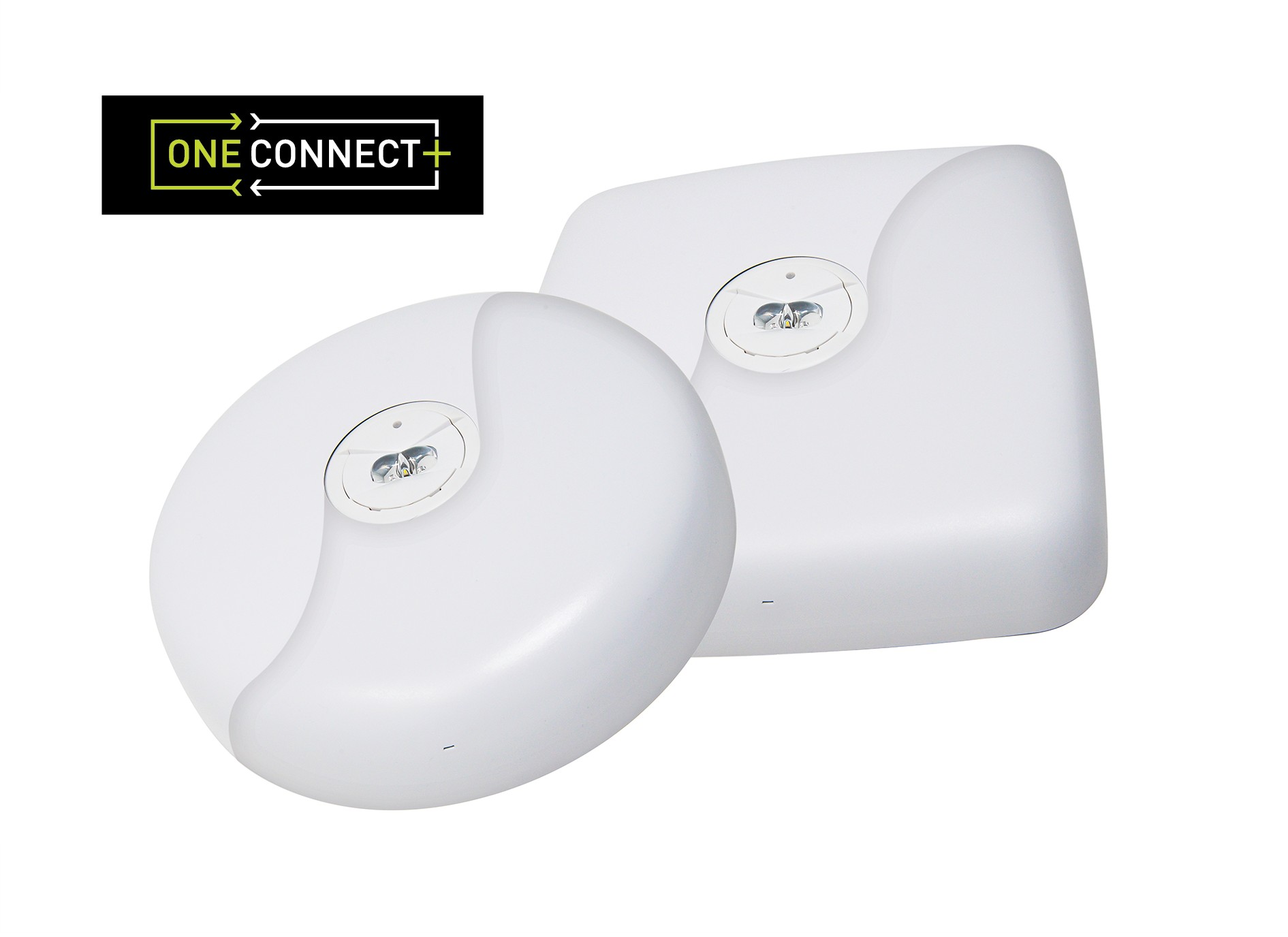

One-Lux ONE-LED SOLO SURFACE™ — Surface-Mounted Non-Maintained LED Emergency Luminaire
The ONE-LED SOLO SURFACE™ is a versatile, surface-mounted non-maintained emergency luminaire combining lamp, driver and battery into one unit. Designed for rapid surface installation with either square or round style covers, and available with advanced control options such as DALI-2, Self-Test, or wireless (Casambi/Silvair).
Contact us for quotations and trade discount info
Key Features
- ✅ Non-maintained emergency luminaire – self-contained lamp, driver and rechargeable battery in one unit.
- ✅ Surface mountable enclosure available in either round or square design for flexible aesthetics.
- ✅ Available with DALI-2, Self-Test or wireless (Casambi/Silvair) control options for modern emergency lighting systems.
- ✅ Optional corridor-lens version for long-throw spacing (19 m typical at 2.5 m mounting height).
- ✅ Compact gear tray with universal first-fix mounting and through-ceiling or side conduit cable entry.
- ✅ Built-in charge indicator LED and manual push-to-test switch on lamp bezel for ease of service.
- ✅ Deep discharge protection (DDP) to protect battery cells and ensure long life.
Available Variants / Models
- Model codes: e.g. OLS/C/NM3/LFP (Circular, Open-area), OLS/S/NM3/LFP/CL (Square, Corridor-lens) etc.
- Suffixes: DALI Self-Test versions, Casambi wireless, Silvair wireless.
- View the product page on One-Lux.com
-
Product Codes Model Number Description OLS/C/NM3/LFP OLS/C/NM3/LFP/DST
Circular with ‘Open area’ light distribution DALI Self -Test Circular with ‘Open area’ light distribution
OLS/C/NM3/LFP/CL OLS/C/NM3/LFP/DST/CL
Circular with ‘Corridor’ light distribution DALI Self -Test Circular with ‘Corridor’ light distribution
OLS/S/NM3/LFP OLS/S/NM3/LFP/DST
Square with ‘Open area’ light distribution DALI Self -Test Square with ‘Open area’ light distribution
OLS/S/NM3/LFP/CL OLS/S/NM3/LFP/DST/CL
Square with ‘Corridor’ light distribution DALI Self -Test Square with ‘Corridor’ light distribution
Applications
- ✅ Surface-mounted emergency lighting in commercial or public buildings where ceiling recessing is not feasible.
- ✅ Retrofit installations requiring minimal wiring and rapid installation time.
- ✅ Areas requiring open-space coverage (up to ~8 m spacing) or corridor coverage (up to ~19 m) depending on variant. :contentReference[oaicite:10]{index=10}
Why Choose the ONE-LED SOLO SURFACE™?
- ✅ Fully integrated “lamp + driver + battery” simplifies installation and reduces component count.
- ✅ Flexible styles and optical distributions (round/square, open-area/corridor) make it easy to match building aesthetics while meeting performance criteria.
- ✅ Advanced control options (DALI-2, Self-Test, wireless) future-proof your emergency lighting system for smart building integration.
